PSM rope winch 30 kN

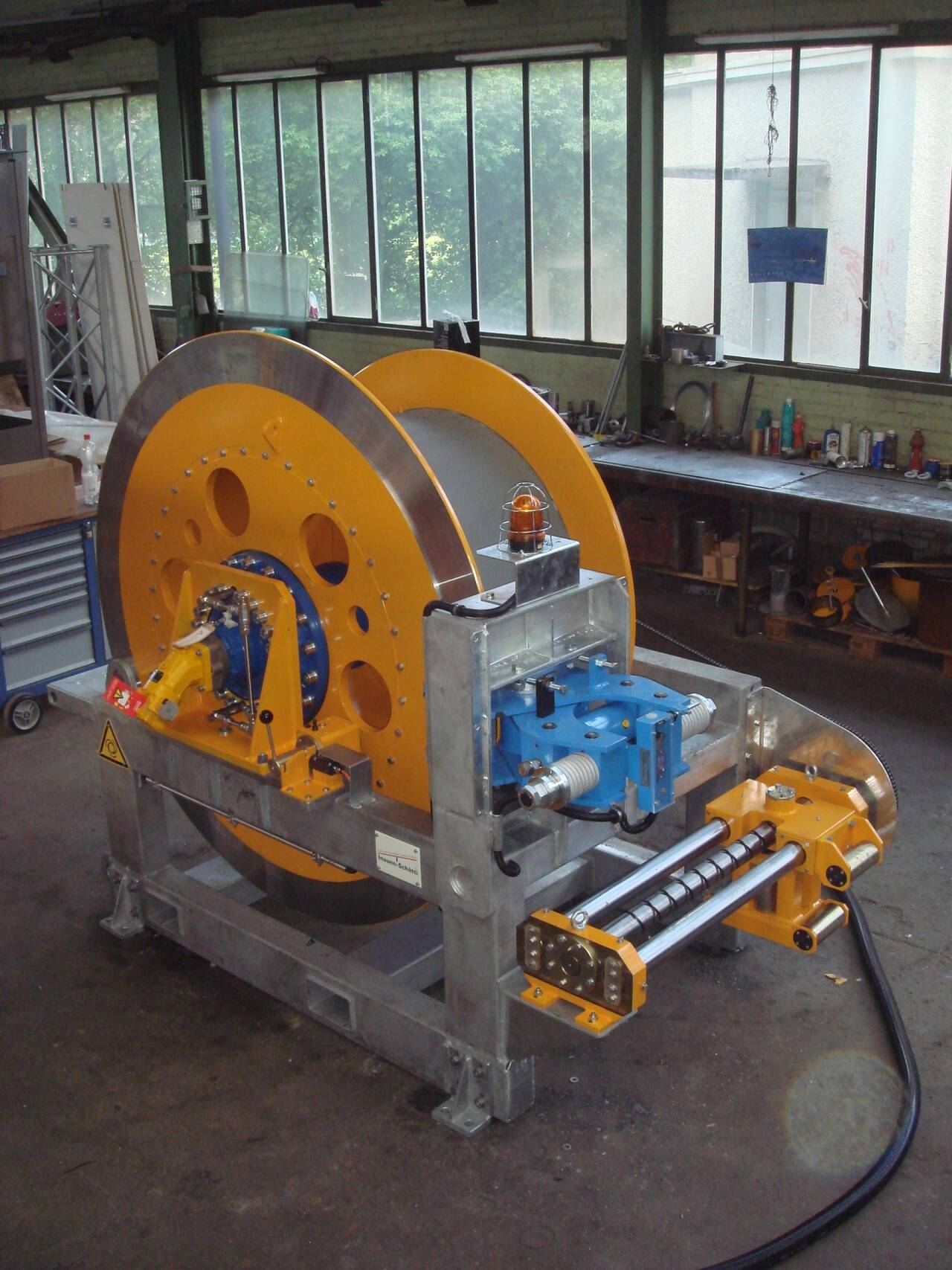

We were allowed to develop a rope winch for the sandblasting factory First that specializes in renewing corrosion protection of power plant pressure tunnels. It can be used flexibly on various construction sites. A special feature is that the winch can be disassembled into smaller components easily and quickly for transport by helicopter and in narrow tunnels.

The winch has been built to CEN provisions and is approved for transporting persons.

Technical data

Route length 950 m
Drive power 47 kW
Rope 20 mm
Operating speed 0-0.1 m/s
Winch pulling force 30 kN
