PSM shaft elevator, Muttsee

Project "Linthal 2015"

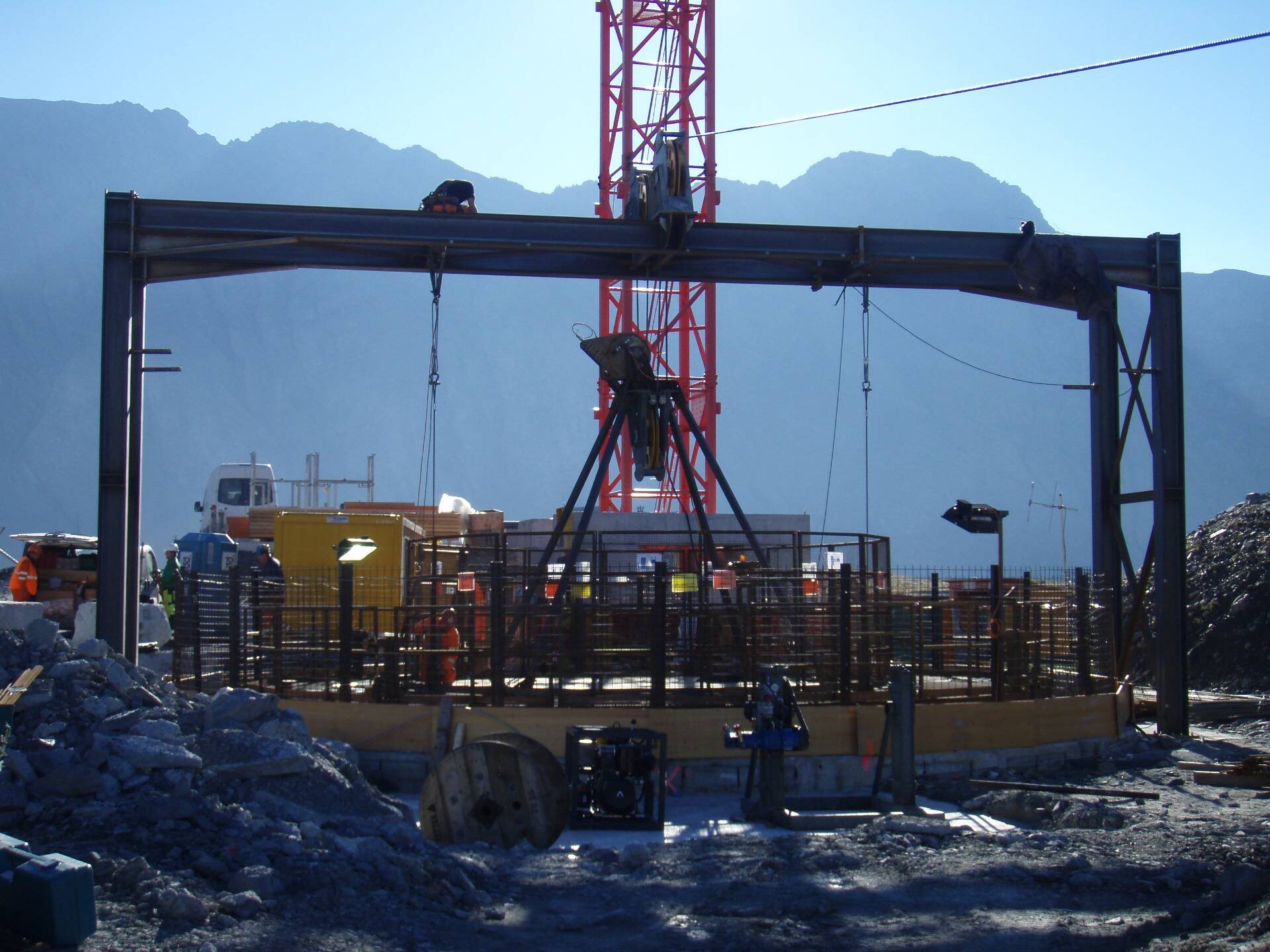

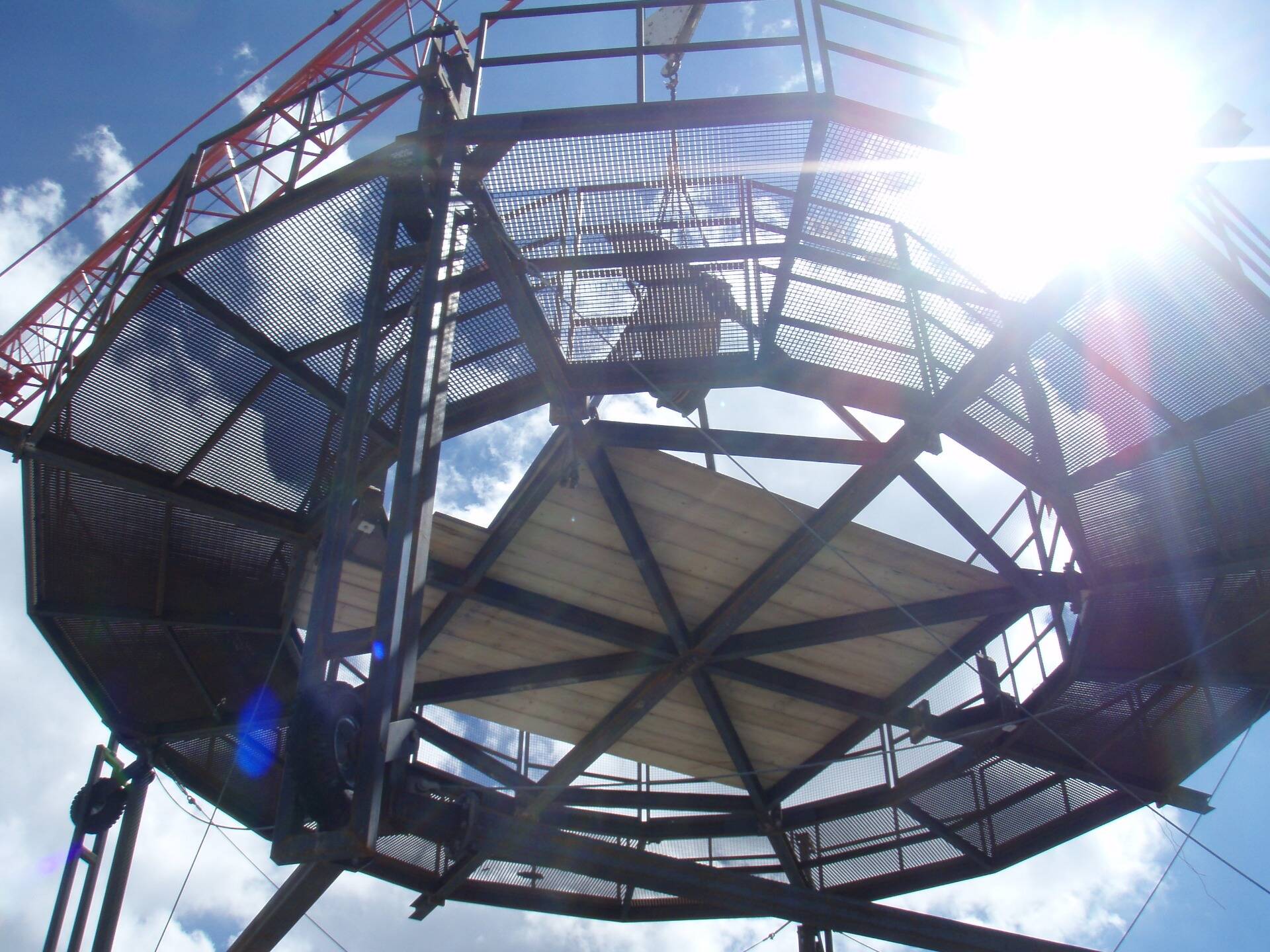

We installed a temporary shaft elevator for installation work in the Wasserschloss Muttsee in the summer of 2013. The work platform has a diameter of about 12 meters and is moved with a flange-connected towing rope in the roughly 120 meters high shaft.

Technical data

Route length (height) 116 m
Diameter of work platform 11.7 m
Vehicle weight compl. 10'000 kg
Operating speed 0-1.4 m/s

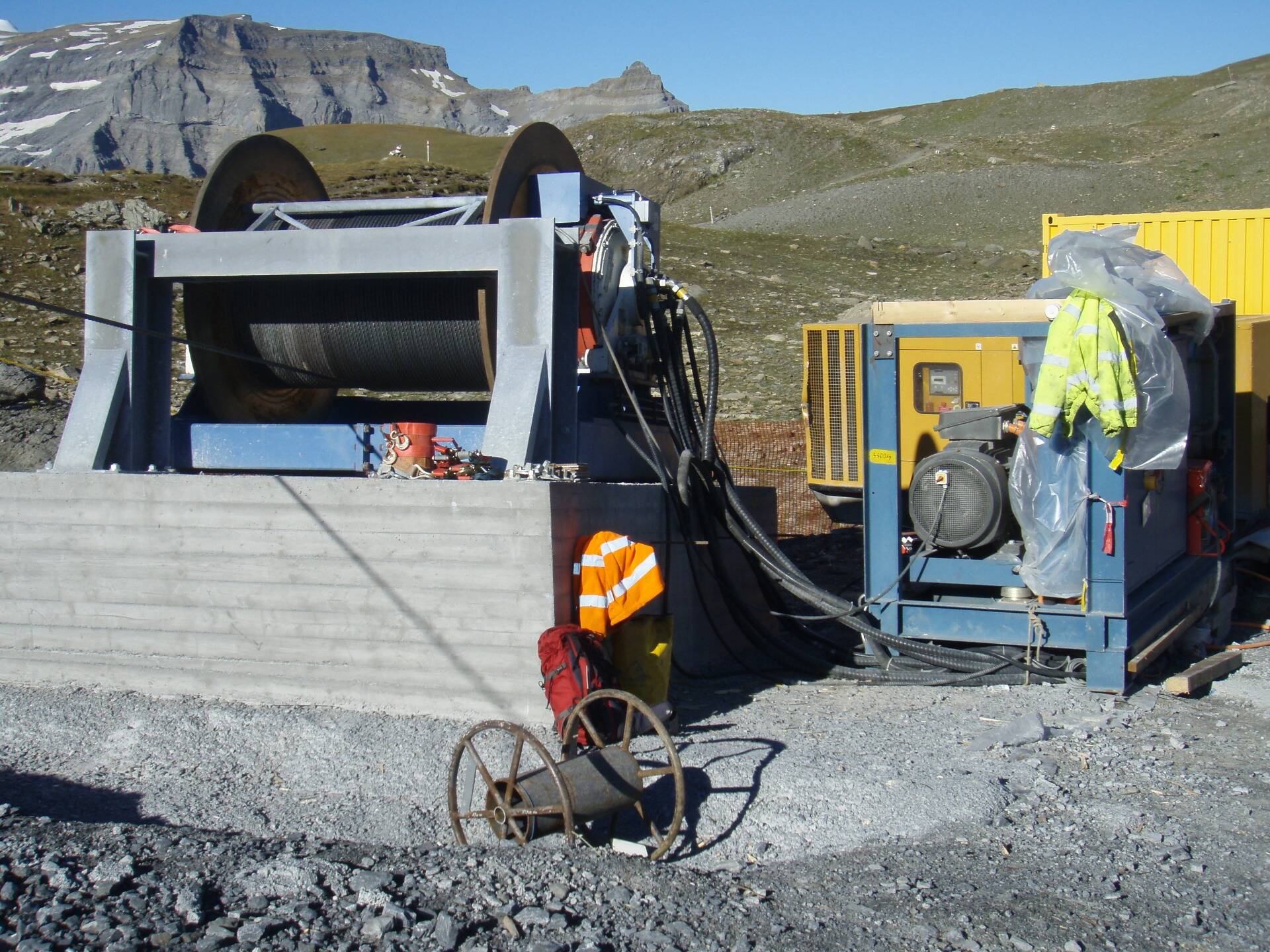

Engine power 220 kW
Hoist rope 24 mm
