Inclined elevator Rue Georges-Auguste Matile 5, Neuchâtel

Type PICCOLO

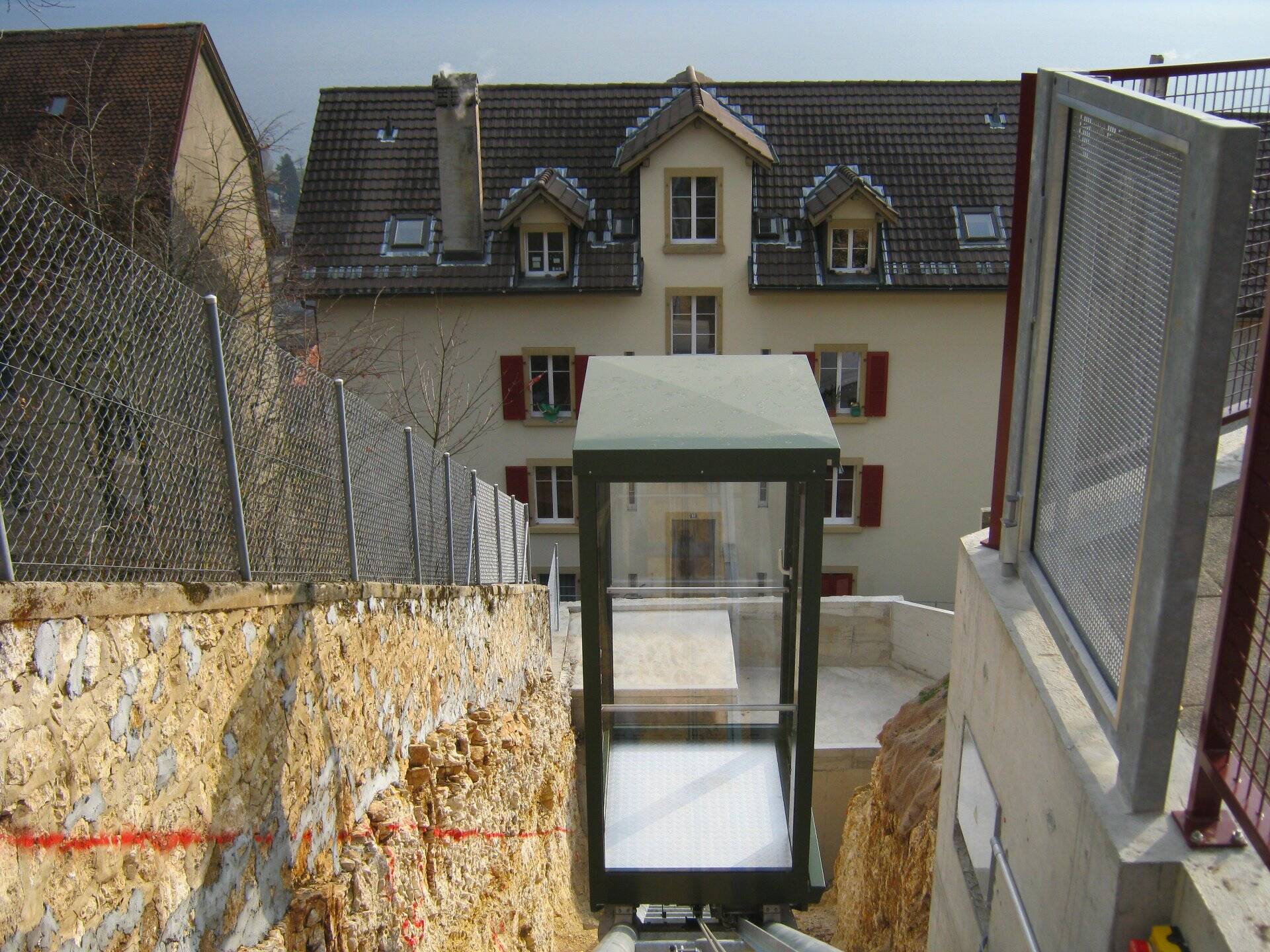

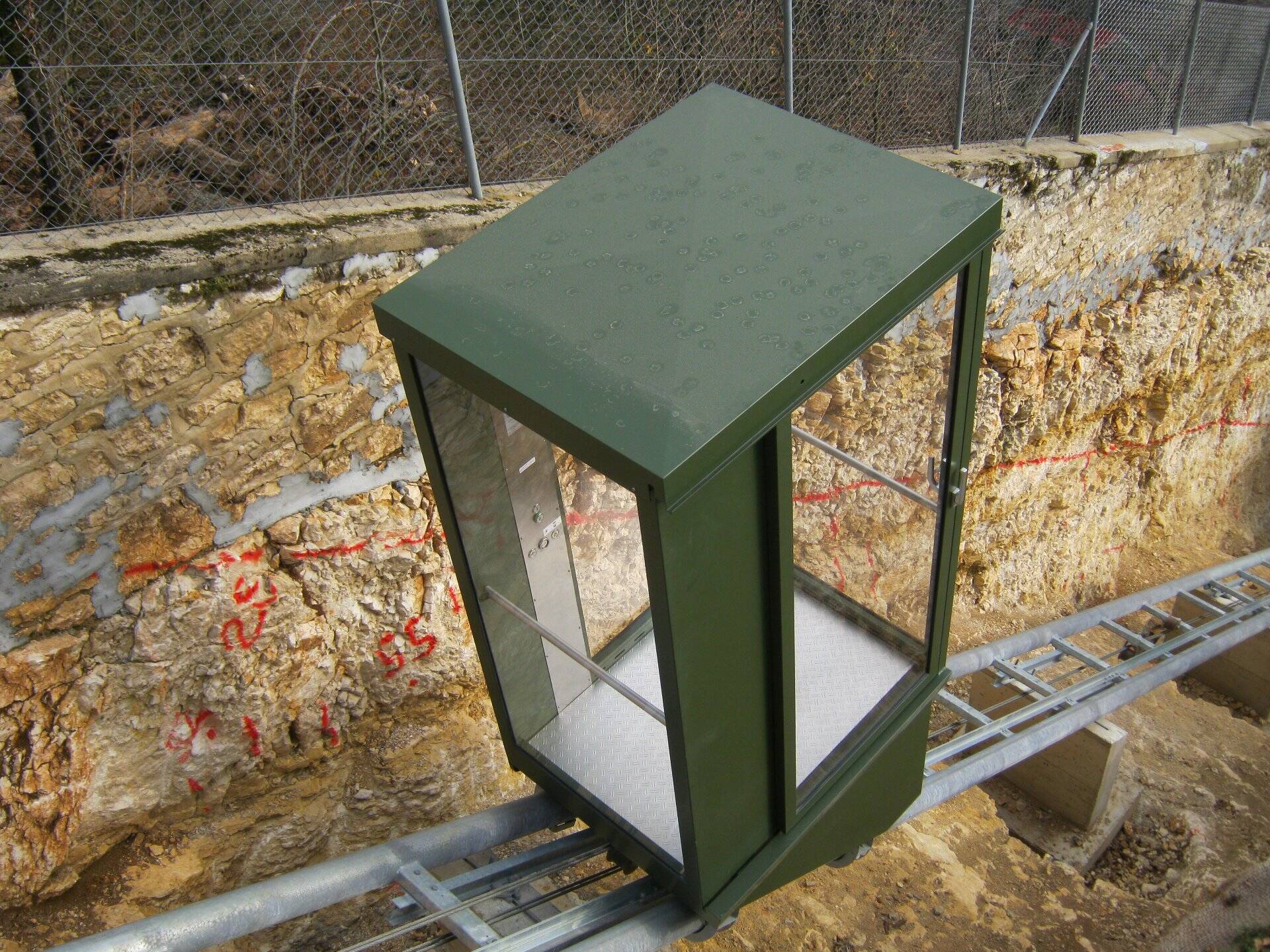

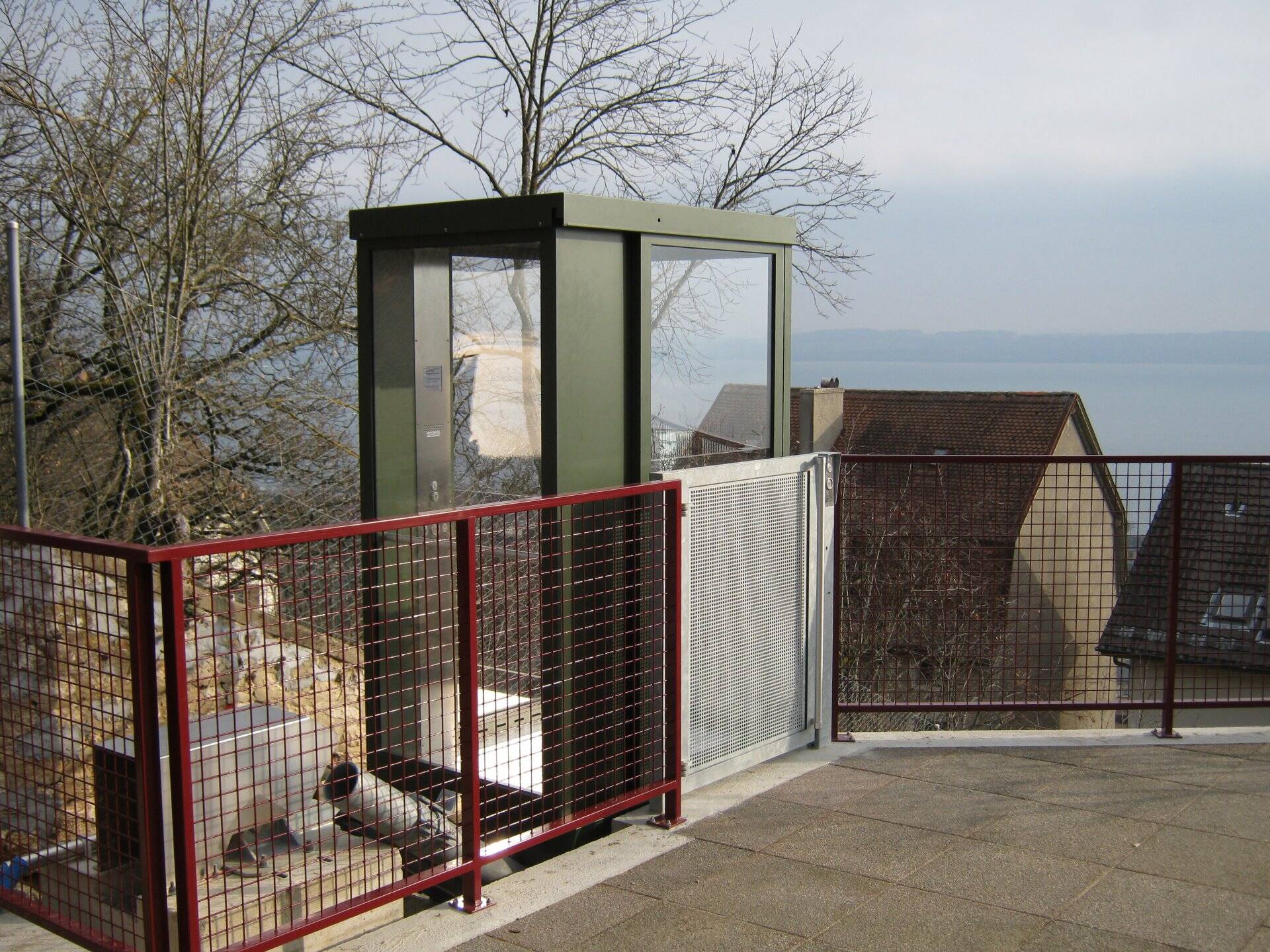

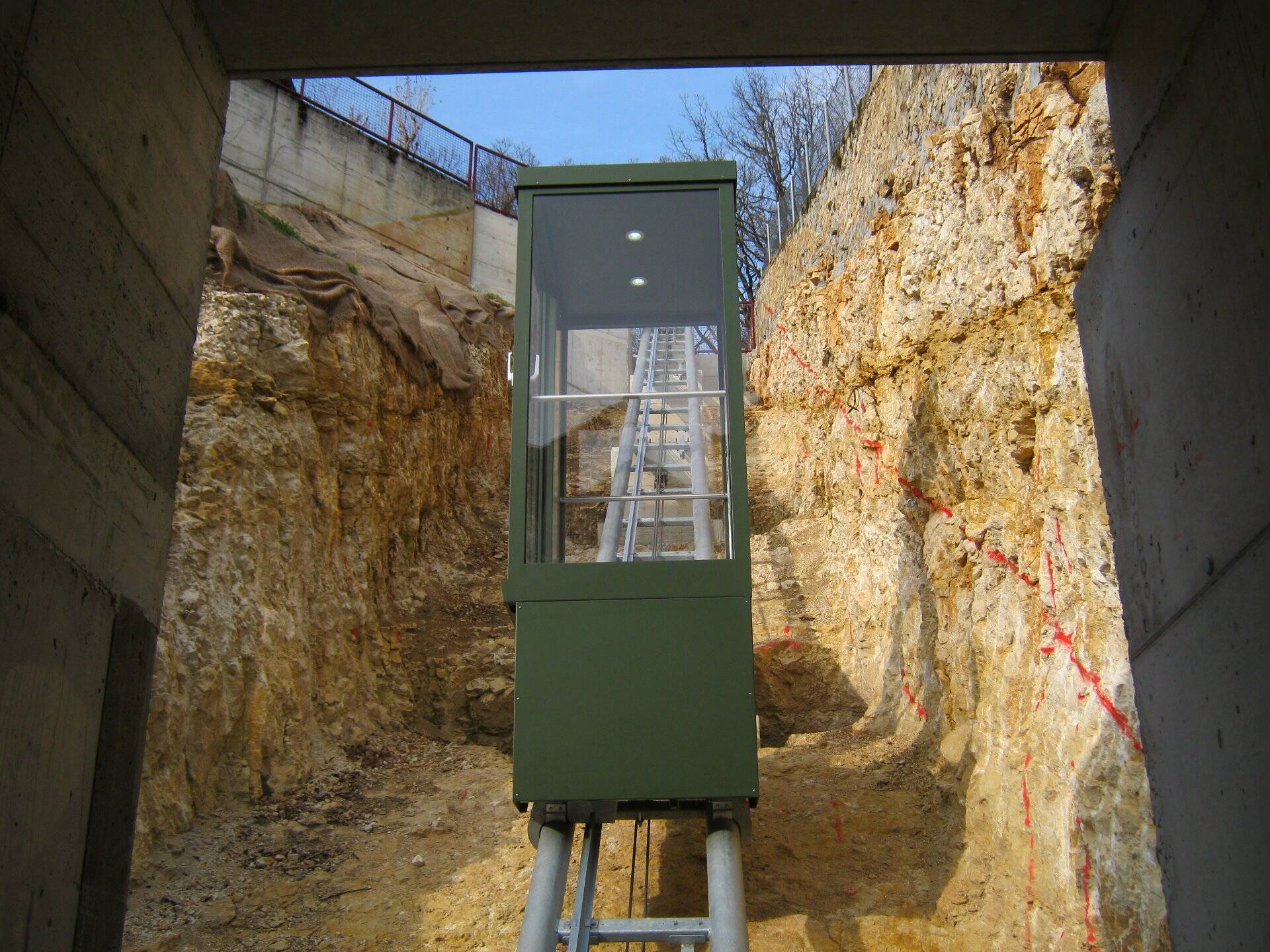

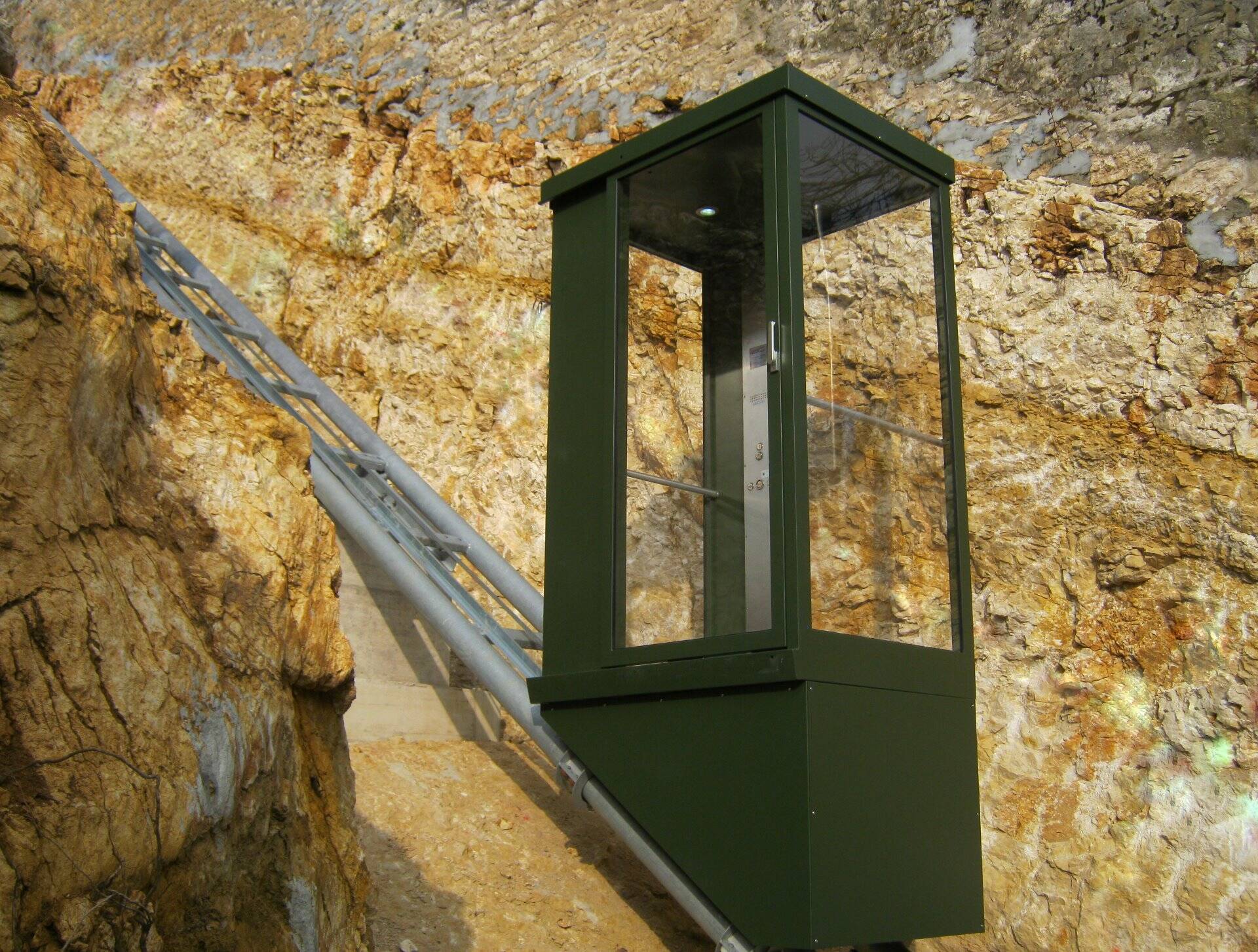

The system was handed over to the customer in January 2011. The elevator provides access to a private residential building. It has 2 stations. The elevator access is located next to the garage. The elevator is also roofed-over in this area. Its return sends the elevator back to this protected position each time. The cabin and station doors are operated manually.

The elevator is powered by a 2-cable winch placed below the valley station. The electrical conductors in the rope connect the elevator directly to the control.

Technical data

Route length 27 m
Inclination 36.3°
Number of stages 2
Operating speed 1.0 m/s
Payload 4 passengers
Year of build 2011
