LSB, Vitznau-Hinterbergen

Renewal

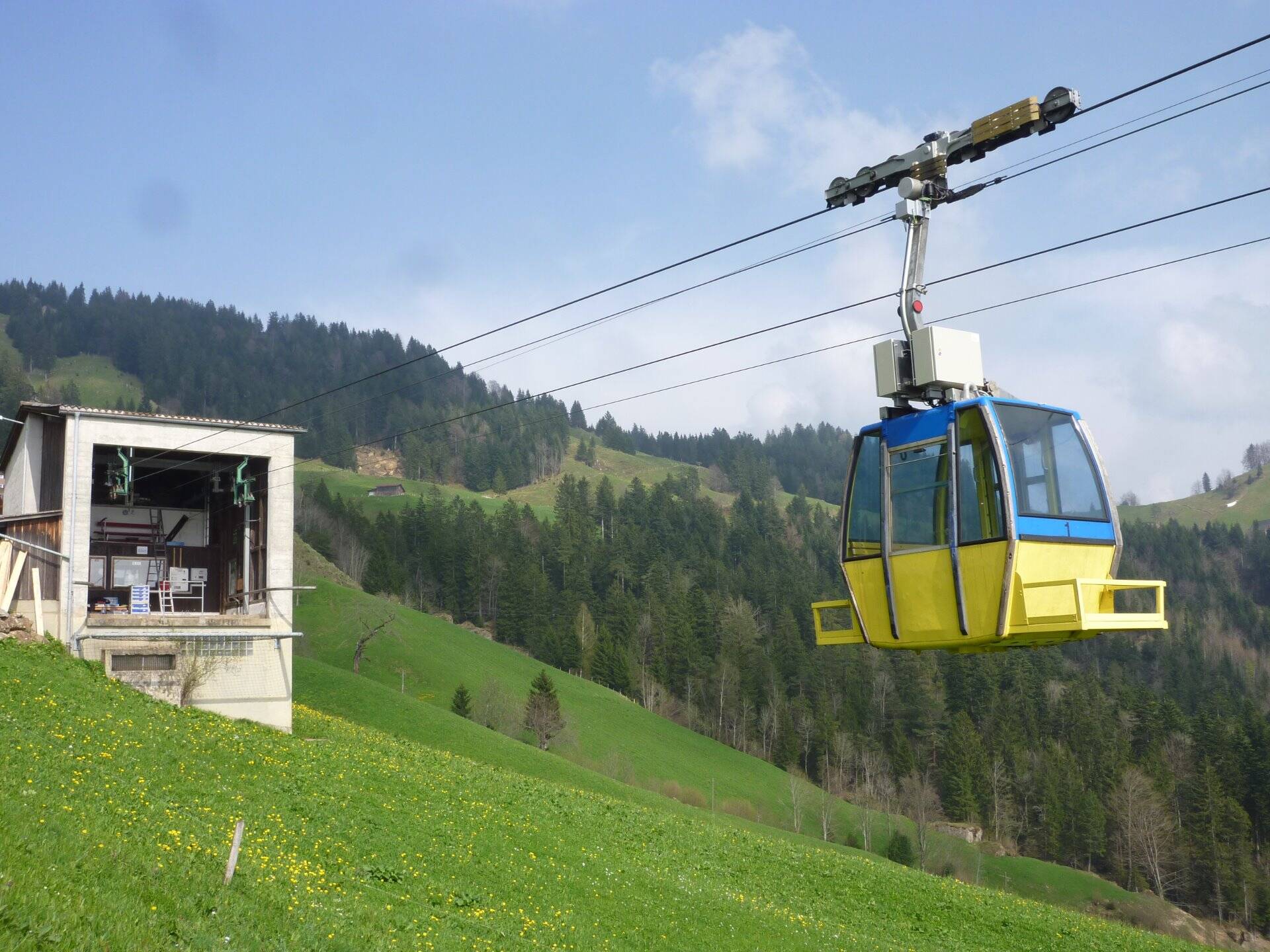

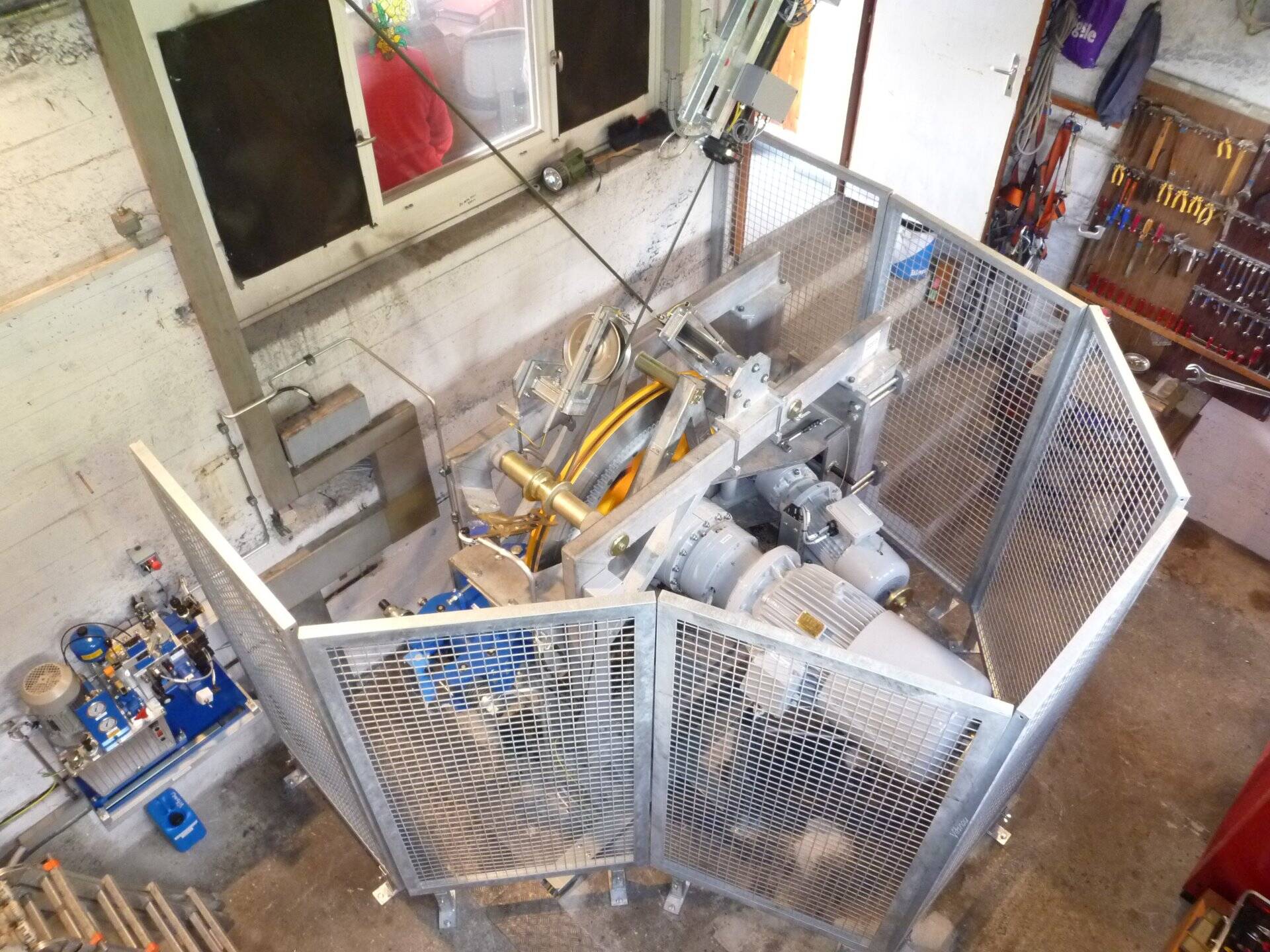

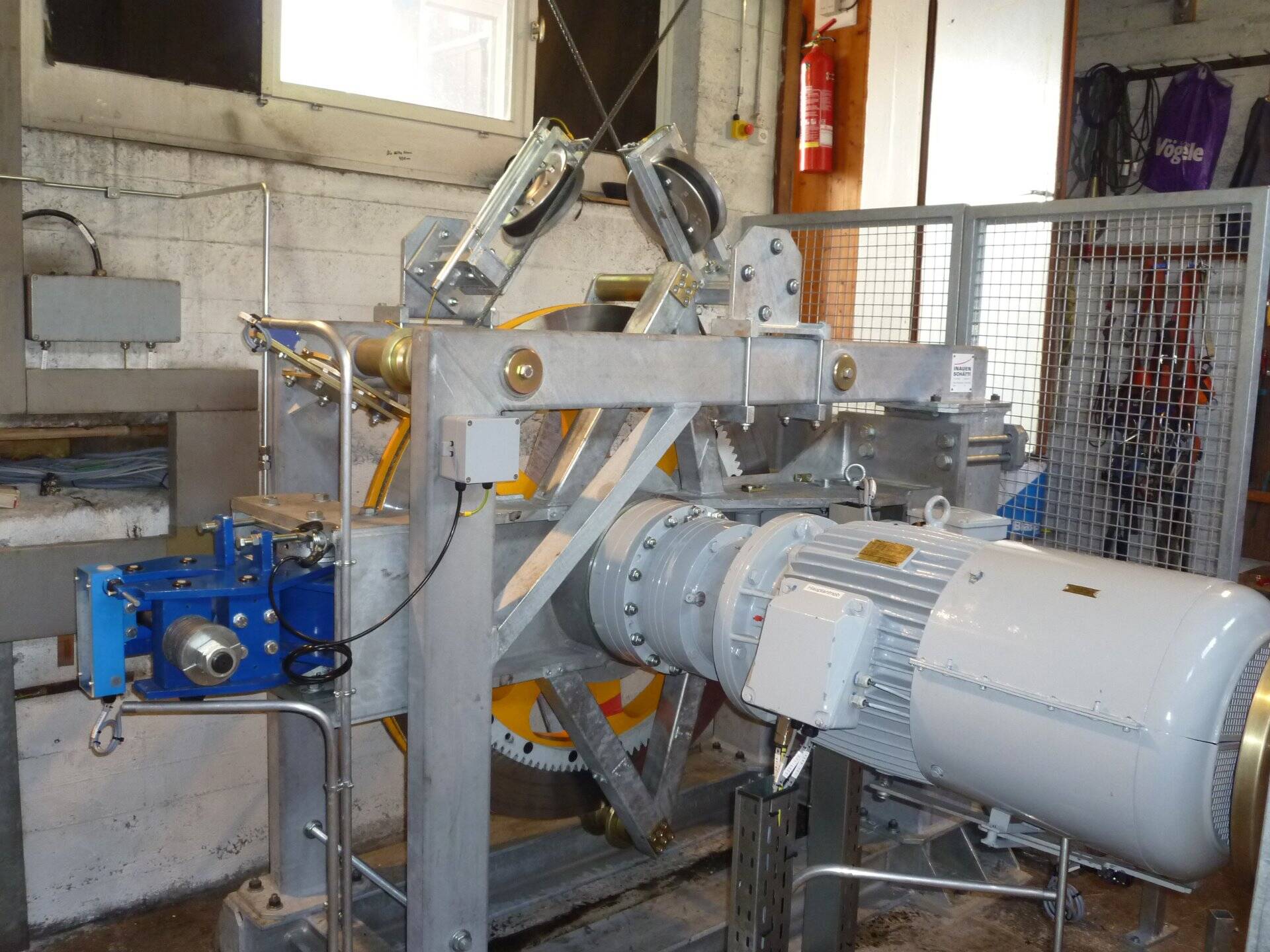

We were able to perform some renewal work on the jig-back ropeway for 4 in Vitznau-Hinterbergen in the spring of 2013. The drive into the mountain station was completely replaced. The new drive is a standard drive from our compact aerial tramway system. The system was equipped with a new aerial tramway control. The conversion also included various revision and rope work.

Technical data

Route length 1104 m
Height difference 575 m
Number of supports 4
Operating speed 4.0 m/s
Engine power 37 kW
Carrying rope / towing rope 22 mm / 13 mm
