8-ATW Fellboden-Bannalpsee

Renewal

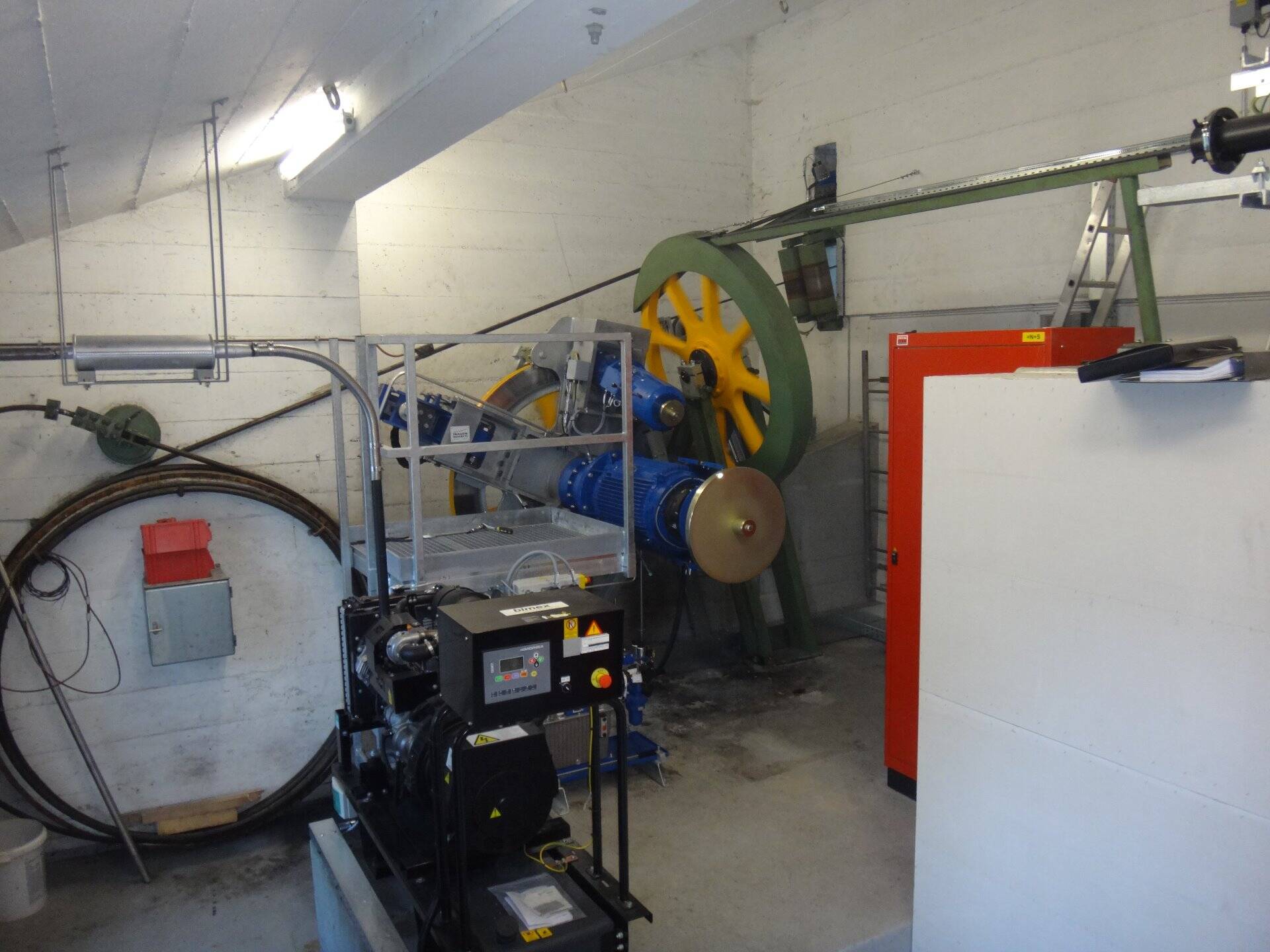

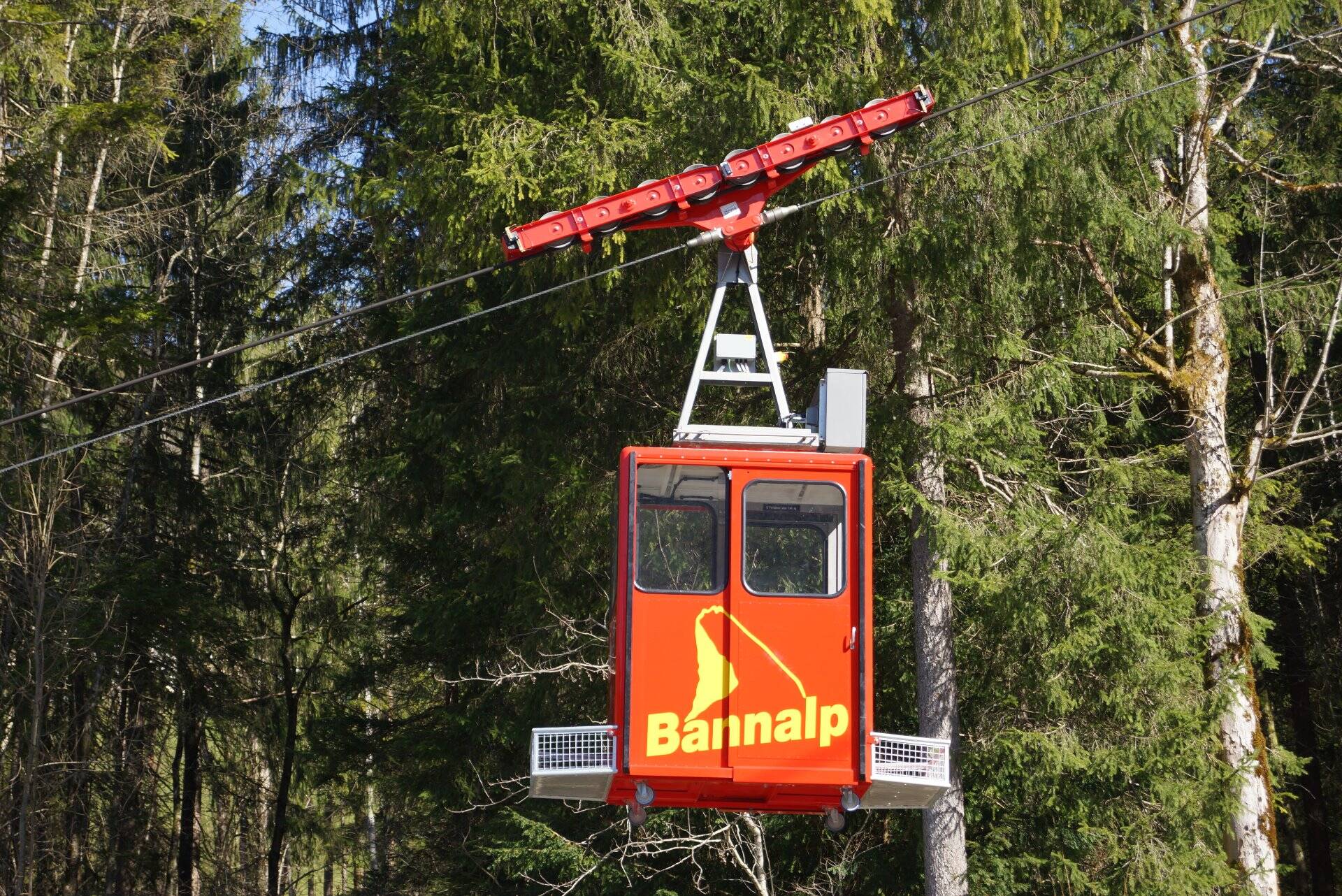

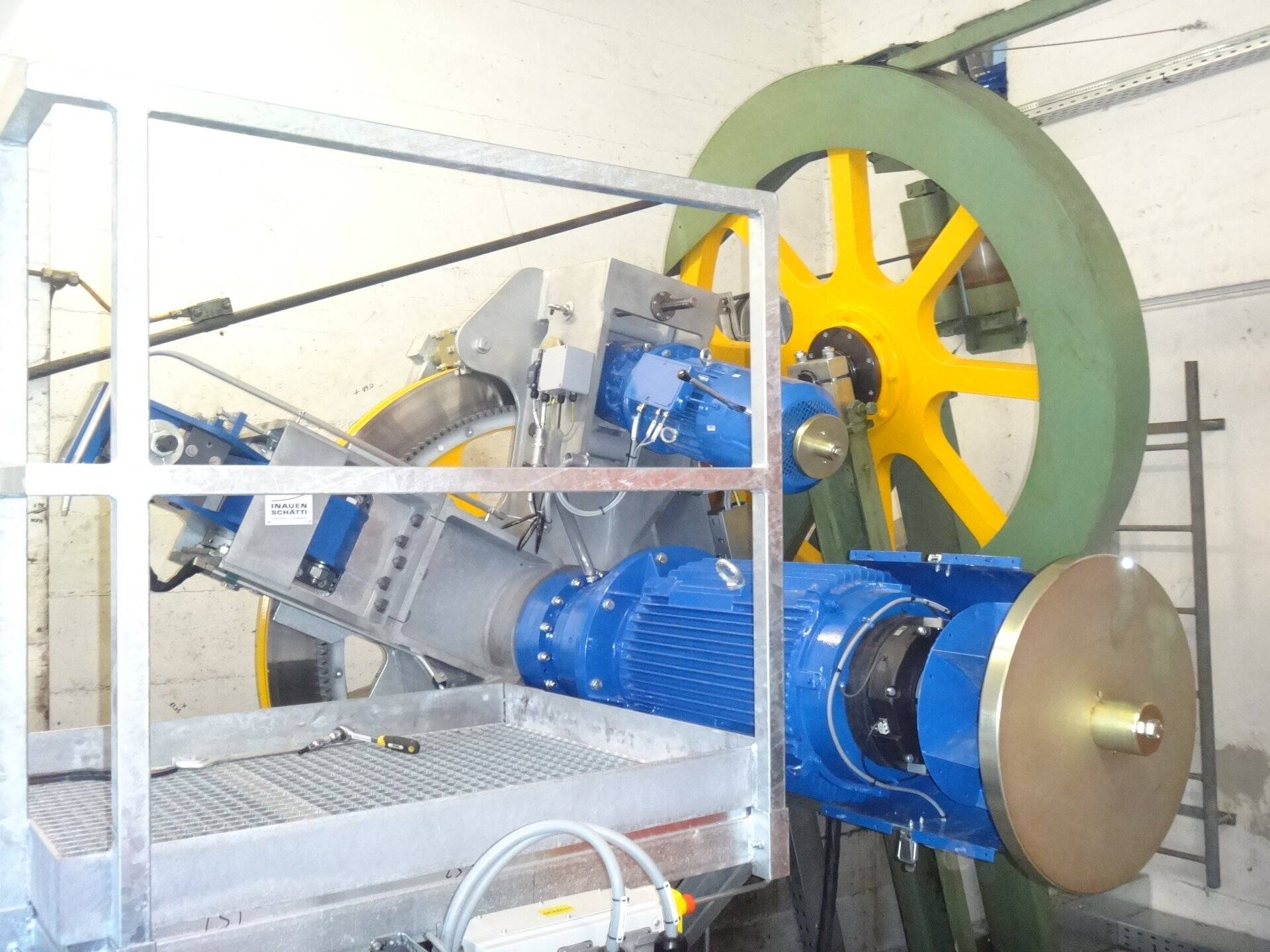

We were able to renew the aerial tramway to the Bannalpsee lake in Oberrickenbach. The entire drive and the control were replaced in this. A compact system from our compact aerial tramway system was chosen as drive. It could be perfectly implemented into the drive room without any constructional measures. The conversion also included a basic renovation of the drives and cabins. A new telecom rope was installed in connection with the new control and the video system.

Technical data

Route length 1'500 m
Height difference 679 m
Number of supports 2
Operating speed 6.0 m/s
Engine power 55 kW
Carrying rope / towing rope 30 mm / 16 mm
